Tipo de pagamento:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF
Quantidade de pedido mínimo:1 Piece/Pieces
transporte:Ocean,Land,Air
$0.1-1 /Piece/Pieces
marca: HY ou OEM
Serviço De Garantia: 3 anos
Lugar De Origem: China
Connection: Welding
Cor: Cinza escuro
Pressure: 1.6Mpa
Material: UPVC
Temperature: -15 to 55 Degree Celsius
Hardness: Hard Tube
transporte: Ocean,Land,Air
Tipo de pagamento: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

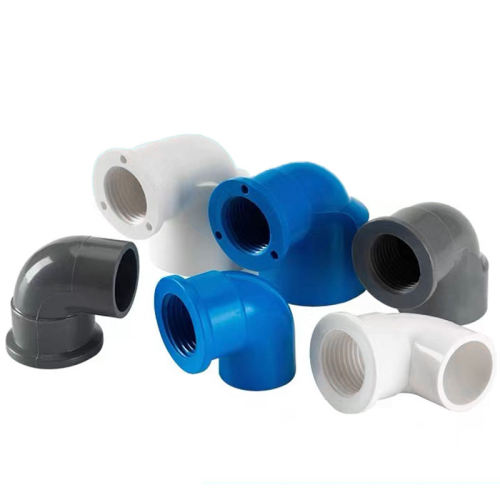

| Key Word: | High Quality Female Elbow for UPVC Pipe PN16 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50 | ||
| 1/2,3/4,1,1-1/2,2inch | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Como fornecedor líder de preço de fábrica de cotovelo feminino de PVC personalizado , nos especializamos em acessórios de transição de alta pressão que preenchem a lacuna entre tubos soldados com solvente e componentes roscados. Nosso cotovelo roscado fêmea de PVC PN16 é moldado com precisão com uma estrutura reforçada para garantir máxima segurança e vazamento zero a uma pressão de trabalho de 1,6 MPa.
| PN16 PVC female elbow dimensions chart (Unit: mm) | |||||||||
| Nominal | Socket Type | Structural Diameter | |||||||
| SIZE | d1 | d2 | I | D1 | D2 | d | H1 | H2 | |
| DN15 | 20mm*1/2" PVC female adapter | 20.3 | 20.0 | 16.0 | 27.0 | 27.0 | 16.0 | 28.5 | 28.5 |
| DN20 | 25mm*3/4" PVC female adapter | 25.3 | 25.0 | 19.0 | 33.0 | 33.0 | 21.0 | 34.0 | 34.0 |
| DN25 | 32mm*1" PVC female adapter | 32.3 | 32.0 | 22.0 | 40.5 | 40.5 | 26.0 | 40.5 | 40.5 |
| DN32 | 40mm*1-1/4" PVC female adapter | 40.4 | 40.0 | 26.0 | 49.1 | 49.1 | 34.0 | 48.5 | 48.5 |
| DN40 | 50mm*1-1/2" PVC female adapter | 50.4 | 50.0 | 31.0 | 61.0 | 61.0 | 45.0 | 57.5 | 57.5 |
| DN50 | 63mm*2" PVC female adapter | 63.4 | 63.0 | 38.0 | 75.0 | 75.0 | 58.0 | 71.0 | 71.0 |
