Tipo de pagamento:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF
Quantidade de pedido mínimo:1 Piece/Pieces
transporte:Ocean,Land,Air
$0.1-1 /Piece/Pieces
marca: HY ou OEM
Actuator: Manual
Conexão: Válvula de diafragma
Material: UPVC
Pressão: PN 1.0MPA
Flow Direction: Bidirectional
Uso: Flow Control
Padrão: DIN
Aplicativo: Chemical Industrial
transporte: Ocean,Land,Air
Tipo de pagamento: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | PVC-U 90 degree elbow Pipe joints fittings | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||

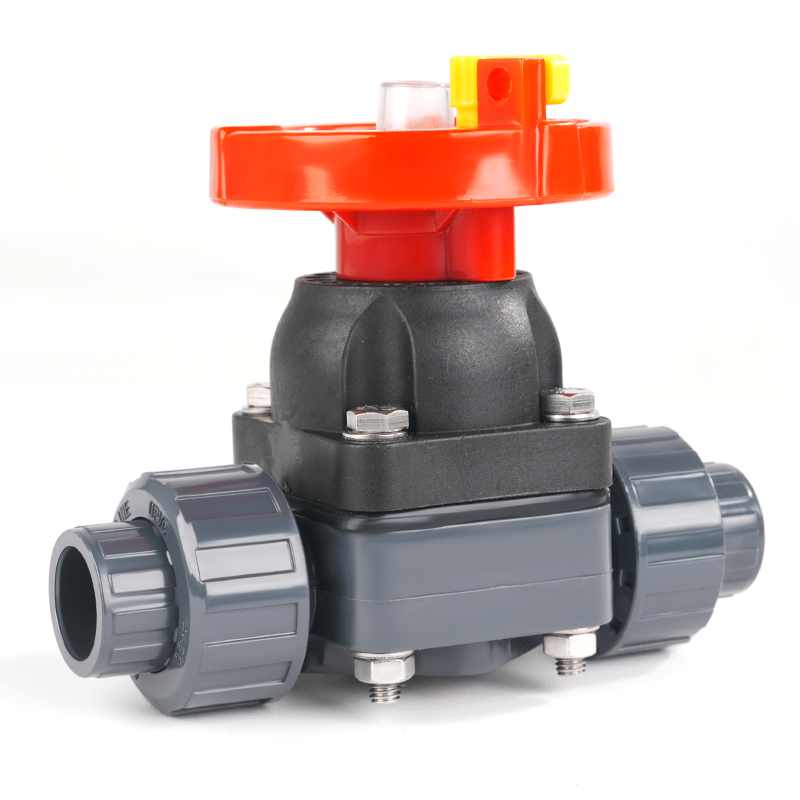

| UPVC True Union Parts&Material | ||
| No. | Parts | Materials |
| 1 | gauge cover | PC |
| 2 | stud nut | steel,stainless steel |
| 3 | hand wheel | ABS,FRPP |
| 4 | Bonnet | UPVC |
| 5 | sleeve | cast iron,copper alloy |
| 6 | Board | Plastc-coated steel,stainless steel |
| 7 | Stud Bolt &Nut | steel&plastic nuts,stainless steel |
| 8 | Union Nut | UPVC |
| 6 | Body | UPVC |
| 10 | O-Ring | EPDM,FPM |
| 11 | Endconnector | UPVC |
| 12 | Stem | steel,stainless steel,copper alloy |
| 13 | compressor | PVDF,CPVC，cast iron |
| 14 | Cushion | EPDM |
| 15 | Diaphragm | EPDM,FPM,FEP,PFA,PTFE |

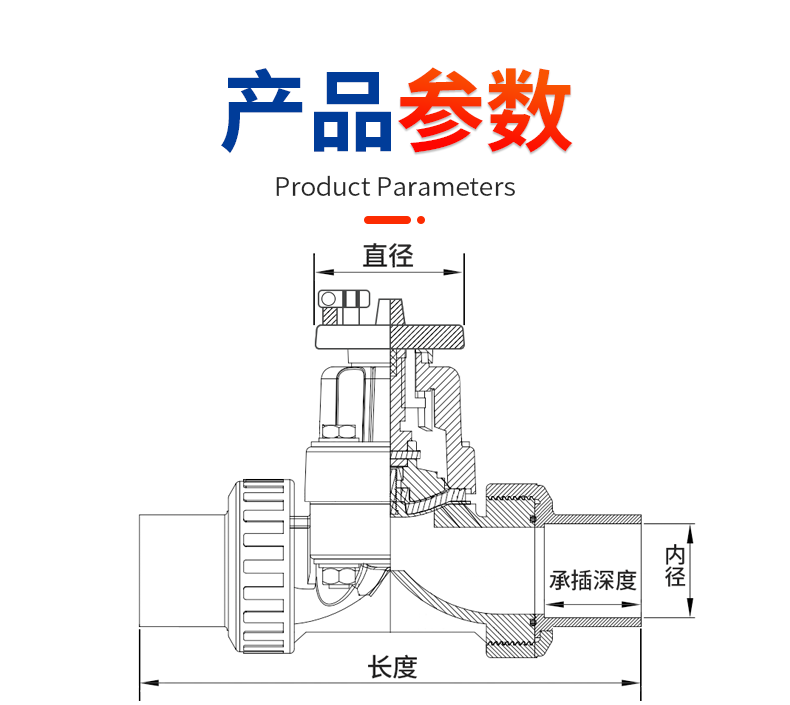

| UPVC DIN True Union Dimensions Table | |||||
| DN | L1 | d | Z | L | |
| socket end | Thread end | ||||
| HG/DIN | HG/DIN | ||||
| 15 | 110 | 20 | Rcl/2 | 17 | 155 |
| 20 | 110 | 25 | Rc3/4 | 24 | 165 |
| 25 | 110 | 32 | Rc1 | 28 | 173 |
| 32 | 175 | 40 | Rc1-1/4 | 29 | 248 |
| 40 | 175 | 50 | Rc1-1/2 | 35 | 257 |
| 50 | 200 | 63 | Rc2 | 39 | 292 |
| DN65-DN125 true union diaphragm valves are manual products,please consult the sales consultant for details The dimension table is calculably based on UPVC material |
|||||
| UPVC JIS True Union Dimensions Table | |||||
| DN | L1 | d | Z | L | |
| socket end | Thread end | ||||
| JIS | JIS | ||||
| 15 | 110 | 22 | PT1/2 | 17 | 155 |
| 20 | 110 | 26 | PT3/4 | 24 | 165 |
| 25 | 110 | 32 | PT1 | 28 | 173 |
| 32 | 175 | 38 | PT1-1/4 | 29 | 248 |
| 40 | 175 | 48 | PT1-1/2 | 35 | 257 |
| 50 | 200 | 60 | PT2 | 39 | 292 |
| DN65-DN125 true union diaphragm valves are manual products,please consult the sales consultant for details The dimension table is calculably based on UPVC material |
|||||
| UPVC ANSI True Union Dimensions Table | |||||
| DN | L1 | d | Z | L | |
| socket end | Thread end | ||||
| ANSI | ANSI | ||||
| 15 | 110 | 21.3 | NPT1/2 | 17 | 155 |
| 20 | 110 | 26.7 | NPT3/4 | 24 | 165 |
| 25 | 110 | 33.4 | NPT1 | 28 | 173 |
| 32 | 175 | 42.2 | NPT1-1/4 | 29 | 248 |
| 40 | 175 | 48.3 | NPT1-1/2 | 35 | 257 |
| 50 | 200 | 60.3 | NPT2 | 39 | 292 |
| DN65-DN125 true union diaphragm valves are manual products,please consult the sales consultant for details The dimension table is calculably based on UPVC material |
|||||
